Description

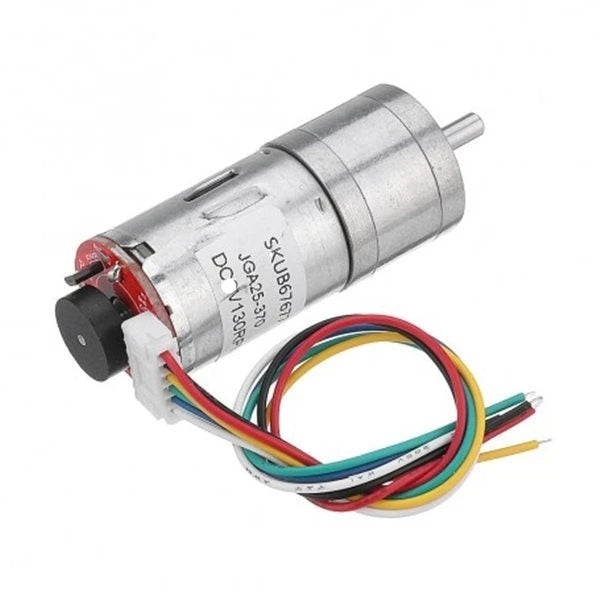

gear motor with encoder Geared Brushed DC Motor with Encoder – 12V 130RPM Magnetic Hall Sensor – VoltaatDescription The Geared Brushed DC Motor with Encoder is a precision motor designed for position feedback and motion control applications. It integrates a magnetic hall effect encoder that provides accurate rotational data for closed loop control systems. Operating at 12V DC with a 1: 75 gear ratio, it delivers stable speed and reliable torque performance. The encoder requires a 5V microcontroller interface for signal processing, ensuring compatibility
Description
The Geared Brushed DC Motor with Encoder is a precision motor designed for position feedback and motion control applications. It integrates a magnetic hall effect encoder that provides accurate rotational data for closed-loop control systems. Operating at 12V DC with a 1:75 gear ratio, it delivers stable speed and reliable torque performance. The encoder requires a 5V microcontroller interface for signal processing, ensuring compatibility with common development platforms. Ideal for robotics, automation systems, and embedded control projects.
Features
- Magnetic hall effect encoder for position feedback
- High resolution encoder up to 823.1 PPR
- 12V DC operation for stable performance
- 1:75 gear reduction for increased torque
- Rated speed 130 RPM output
- D-type shaft for secure coupling
- Compact design for embedded systems
- Bidirectional rotation support
- Low no-load current consumption
- High stall torque up to 6.5 kg.cm
- Compatible with 5V microcontrollers
- Pre-soldered encoder output wires
- Suitable for closed-loop control systems
Specification:
- Operating Voltage: 12V DC
- Rated Speed: 130 RPM
- No Load Speed: 100 RPM
- No Load Current: 0.13A
- Max Efficiency Torque: 1 kg.cm
- Max Efficiency Speed: 80 RPM
- Max Efficiency Current: 0.5A
- Max Power Torque: 3 kg.cm
- Max Power Speed: 55 RPM
- Max Power Current: 1A
- Stall Torque: 6.5 kg.cm
- Stall Current: 3A
- Gear Ratio: 1:75
- Encoder Type: Magnetic Hall Effect
- Encoder Resolution: 823.1 PPR
- Shaft Diameter: 4 mm
- Shaft Length: 12 mm
- Wire Length: 200 mm
Links
- Geared Brushed DC Motor with Encoder Datasheet
- Geared Brushed DC Motor with Encoder 3D Model
